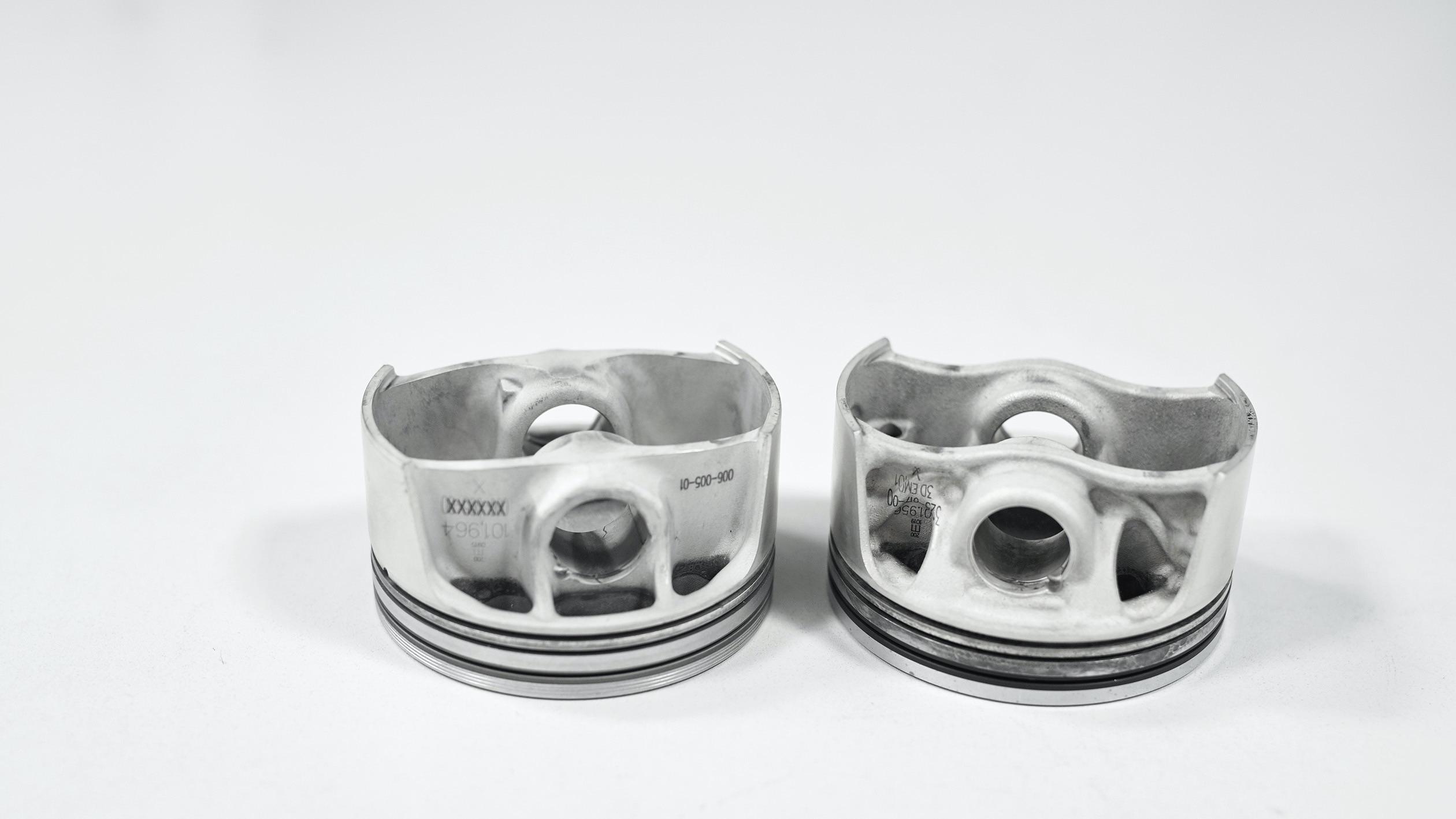

3D printing allows the pistons to be manufactured with a structure that is optimized for the loads acting on the pistons. As a result, the pistons from the advanced development project weigh ten percent less than the forged series production pistons. They also have an integrated and closed cooling duct in the piston crown that could not have been produced by conventional methods.
“Thanks to the new, lighter pistons, we can increase the engine speed, lower the temperature load on the pistons and optimise combustion,” explains Frank Ickinger from the advance drive development department at Porsche. “This makes it possible to get up to 30 PS more power from the 700 PS biturbo engine, while at the same time improving efficiency.”

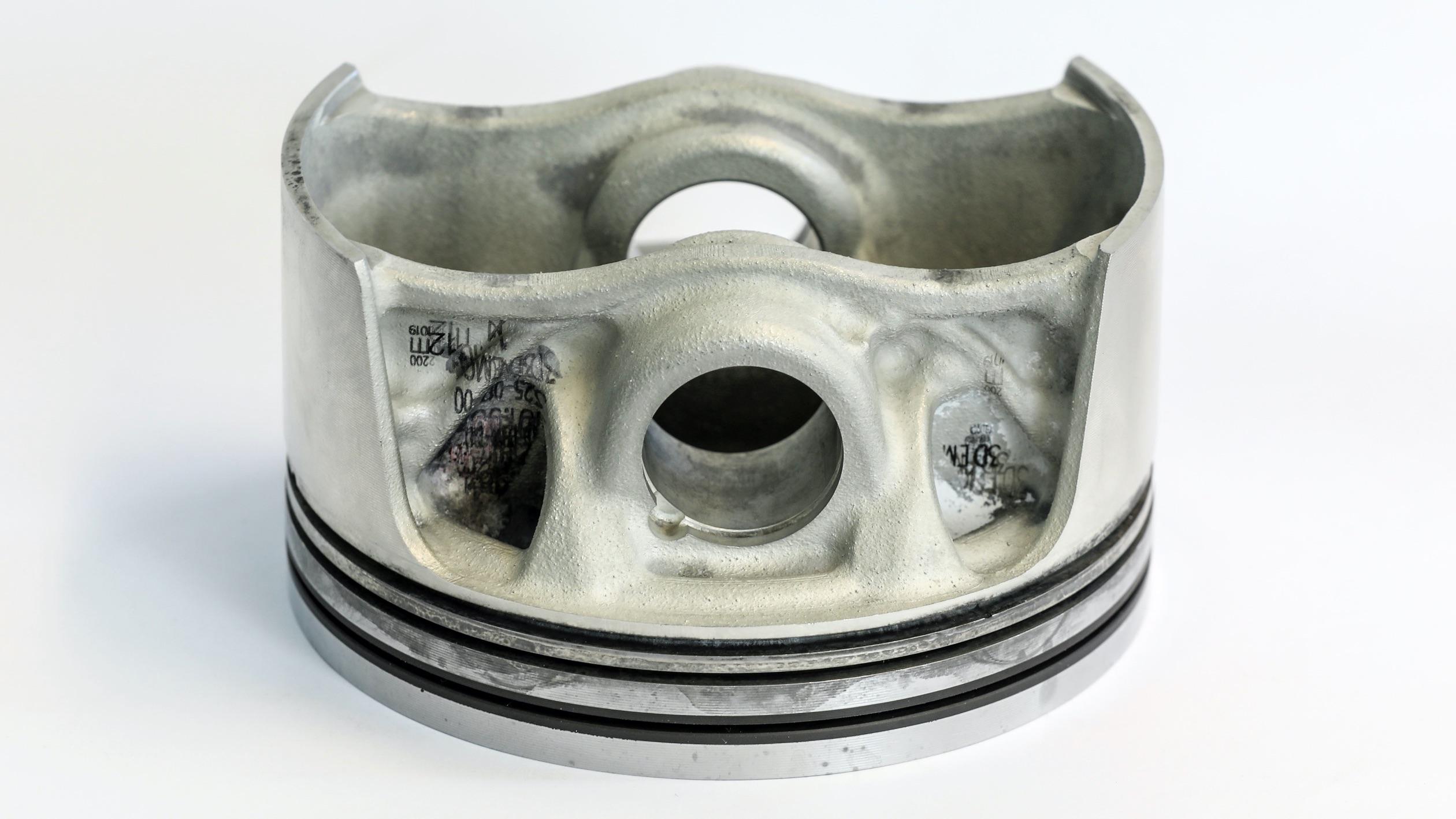

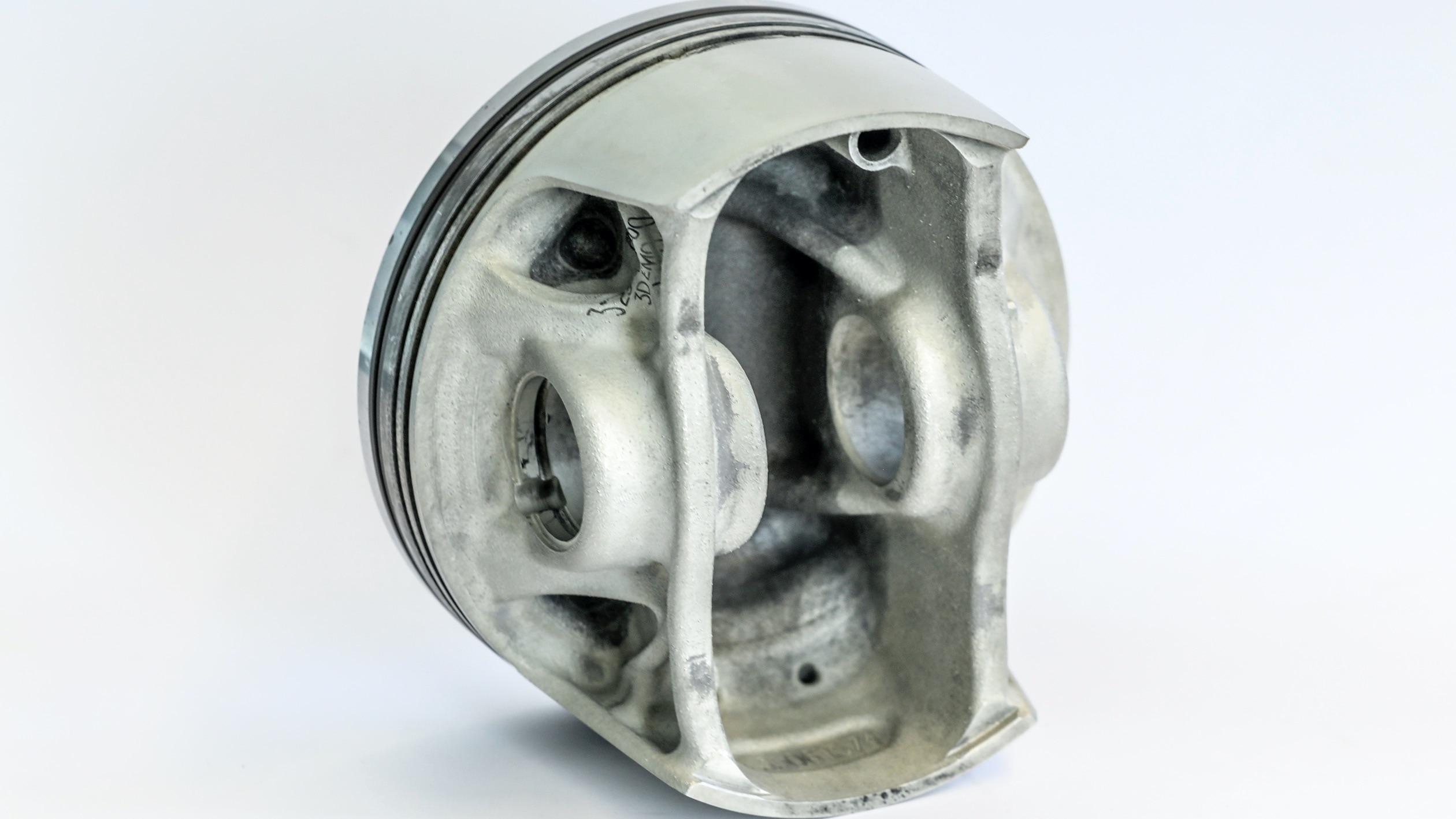

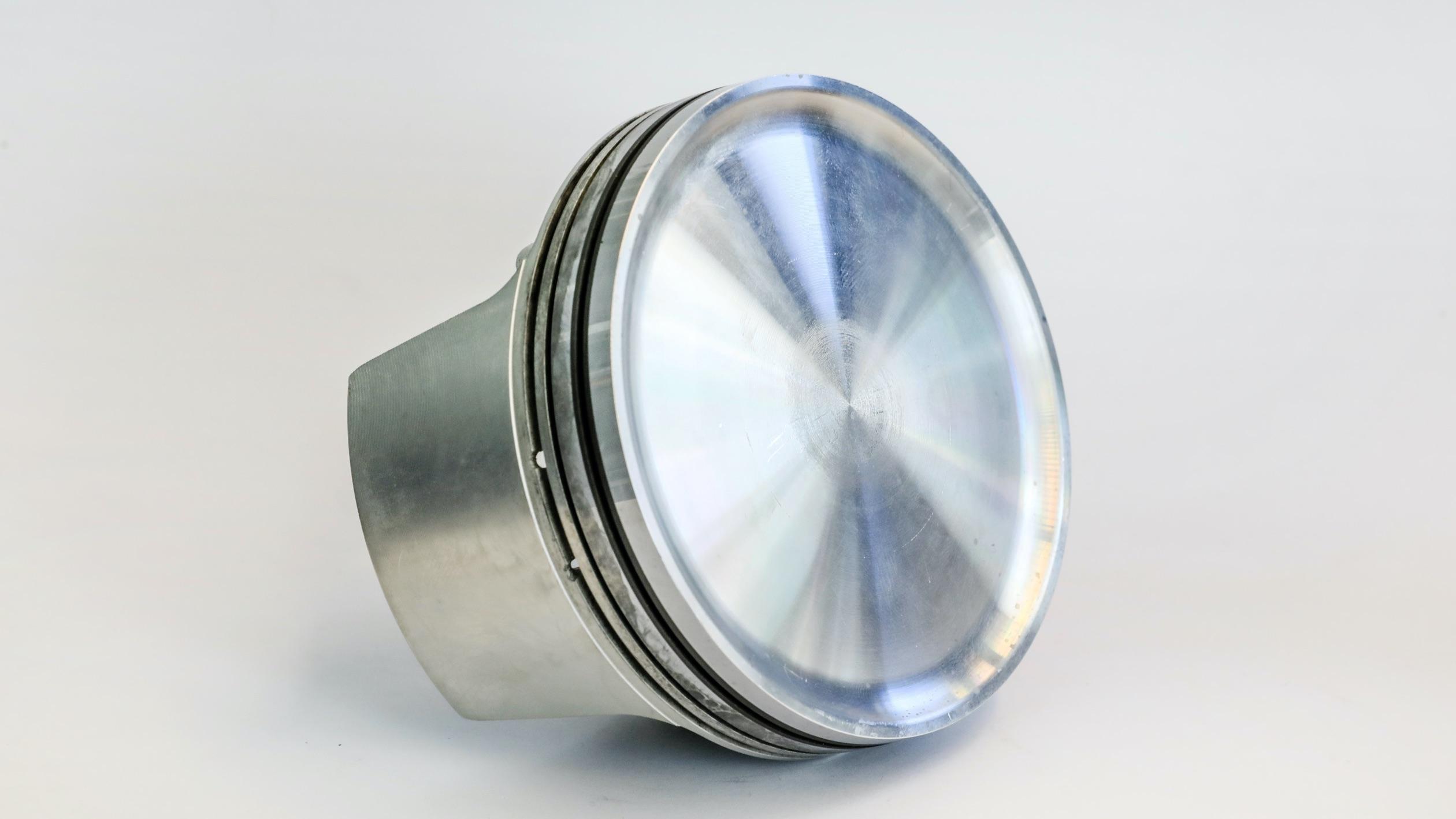

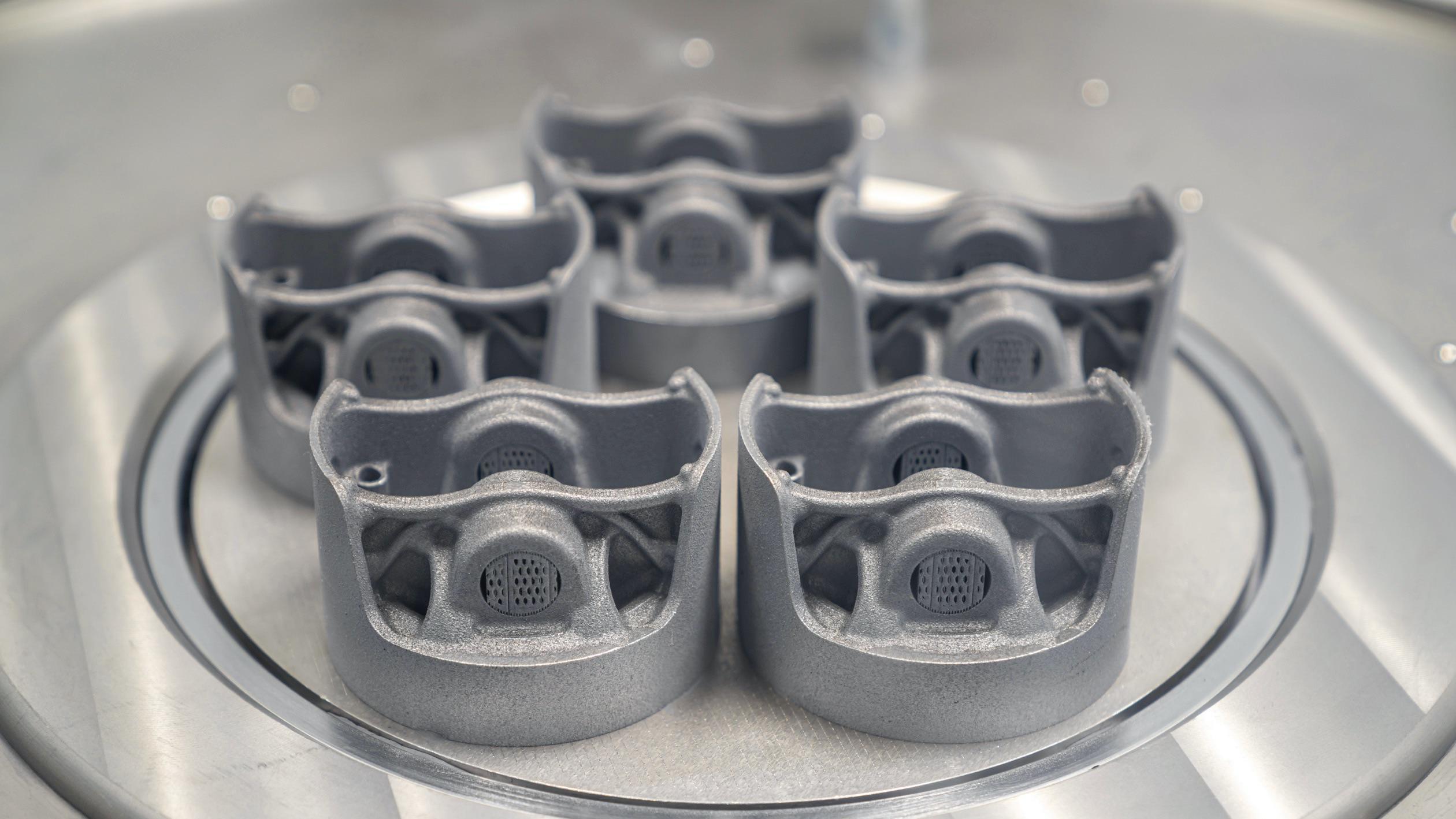

Pistons for the high-performance engine of the 911 GT2 RS
Building up parts layer by layer permits the realization of new and improved designs
There are a number of different technologies for 3D printing. All are based on the principle that the components are built up layer by layer without the need to previously manufacture a special tool or mold. Practically any geometric shape can therefore be realized. The printer can be fed the design data directly from the computer. Additive manufacturing processes are thus ideal for producing structures that have been designed and optimized by means of artificial intelligence (AI).

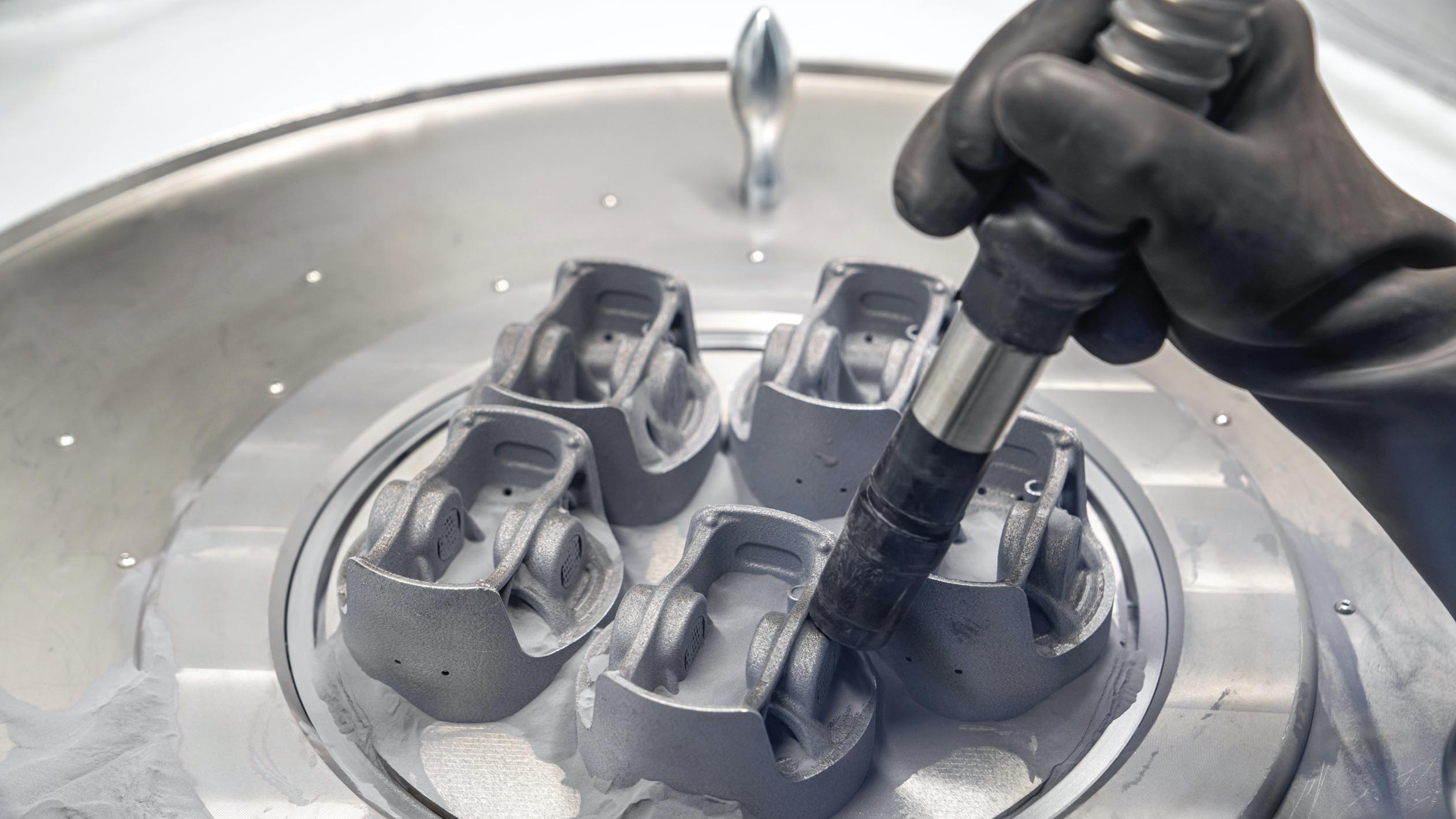

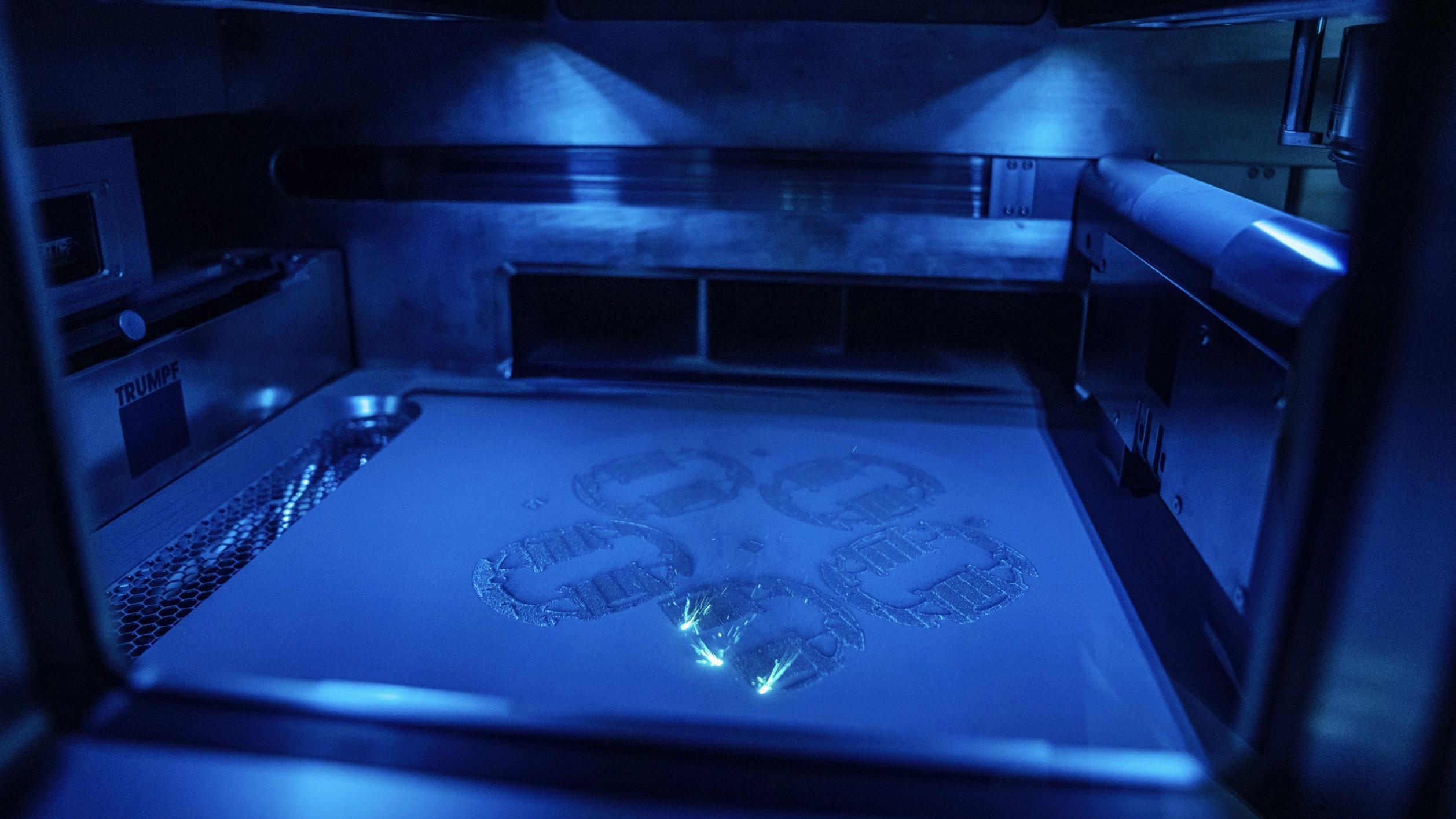

The pistons of the 911 GT2 RS were manufactured from high-purity metal powder using the laser metal fusion process (LMF). Here, a laser beam heats and melts the powder surface corresponding to the part contour. Porsche initiated the joint project together with cooperation partners Mahle and Trumpf. The quality and performance capability of the components were validated using measurement technology from Zeiss.

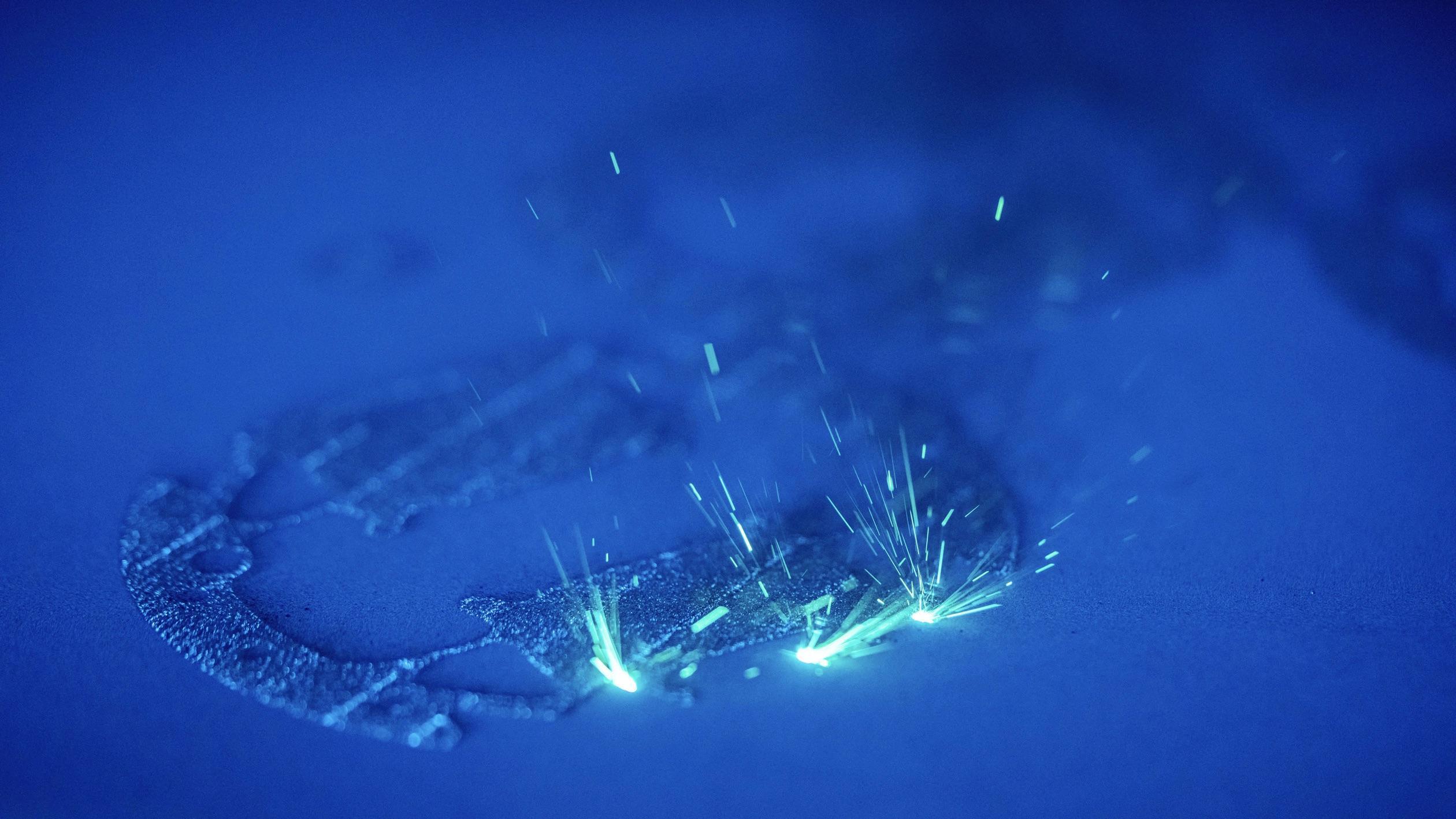

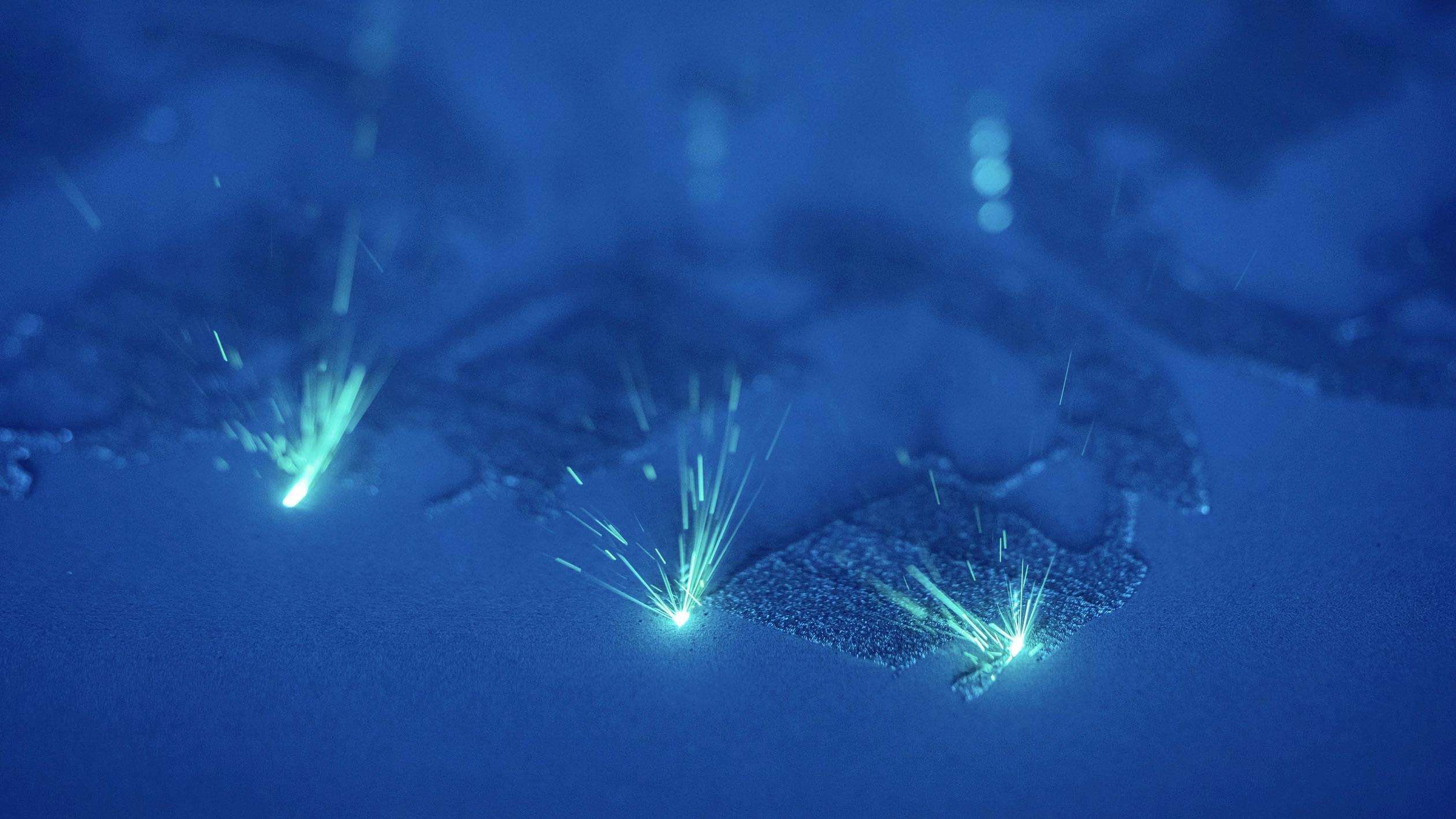

The laser metal fusion process
Wide application field and new potential uses for 3D printing at Porsche
Porsche already uses additive manufacturing processes in several areas. For example, a 3D-printed body form full bucket seat has been available since May for the model series 911 and 718. Here, the central section of the seat, in other words, the cushion and backrest surfaces, is partly produced by a 3D printer. Customers will be able to choose between three firmness levels (hard, medium, soft) for the comfort layer in the future.
Porsche Classic also uses additive processes to reproduce plastic, steel and alloy spare parts that were previously no longer available. A release lever for the clutch of the Porsche 959, for example, today comes from a 3D printer. Around 20 reproduced parts for Porsche classic models are currently manufactured using additive processes. This manufacturing technology is also technically and economically interesting for Porsche for special and small series as well as motorsports. 3D printing, therefore, offers significant potential for Porsche with regard to product and process innovations, which will in turn allow customers to benefit from fascinating and individual products.
